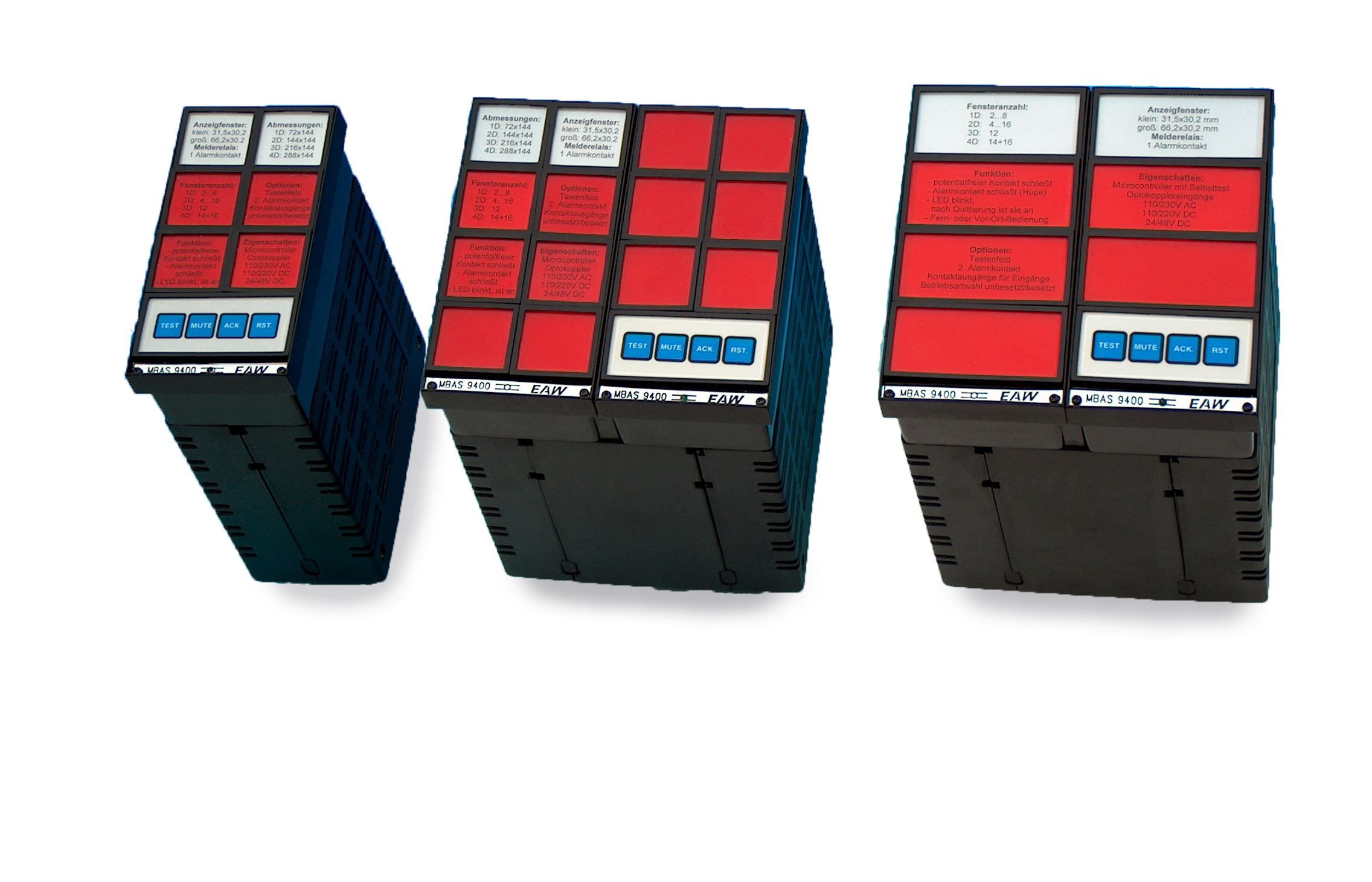

The MBAS 0600 alarm system provides a (visual) alarm of several signals (between 2 and 16 notifications depending on the model) in a compact housing. The MBAS 0600 can be installed in standardised door frames or switchboard panels.

The alarm is signalled via bright, integrated LEDs behind snap-in red windows. An outgoing relay is also actuated at the same time, and this can be used to control a klaxon, for example. This outgoing relay serves as a collective notification. Remote operation of the devices includes inputs for acknowledging and muting the klaxon, as well as for testing and resetting the system.

Special features

  • Potential-free contact required for optical coupler inputs
  • Electrical isolation of all inputs and outputs
  • DIP switch for selecting the alarm program
  • Functional tests at push of a button
  • Self-monitoring of the controller

Summary of technical data

  • Auxiliary voltage depending on model
    (110 V UC, 230 VAC / 220 VDC, 60 VDC, 24 V / 48 VDC)
  • Power consumption/window between 1.5 and 2 VA
  • Inputs
    Internal power supply 12 V
  • Output contact voltage 240 VAC
  • Insulation
    (input outputs, input auxiliary voltage and output auxiliary voltage every 2 kV)
  • Ambient conditions of 0°C to 60°C
  • Storage temperature of 10°C to 70°C

Housing types

  • 1D -> 72x144x215 (total)
              68x138 (section of switchboard)
  • 2D -> 144x144x215 (total)
              138x138 (section of switchboard)
  • 3D -> 216x144x215 (total)
              210x138 (section of switchboard)
  • 4D -> 288x144x215 (total)
              282x138 (section of switchboard)
